Hi @fatogoma18 you’re in the automotive industry, correct?
What is the problem in particular? A layout issue? Deciding between the options? @hemalchevli and @afuevu_ are good resources.

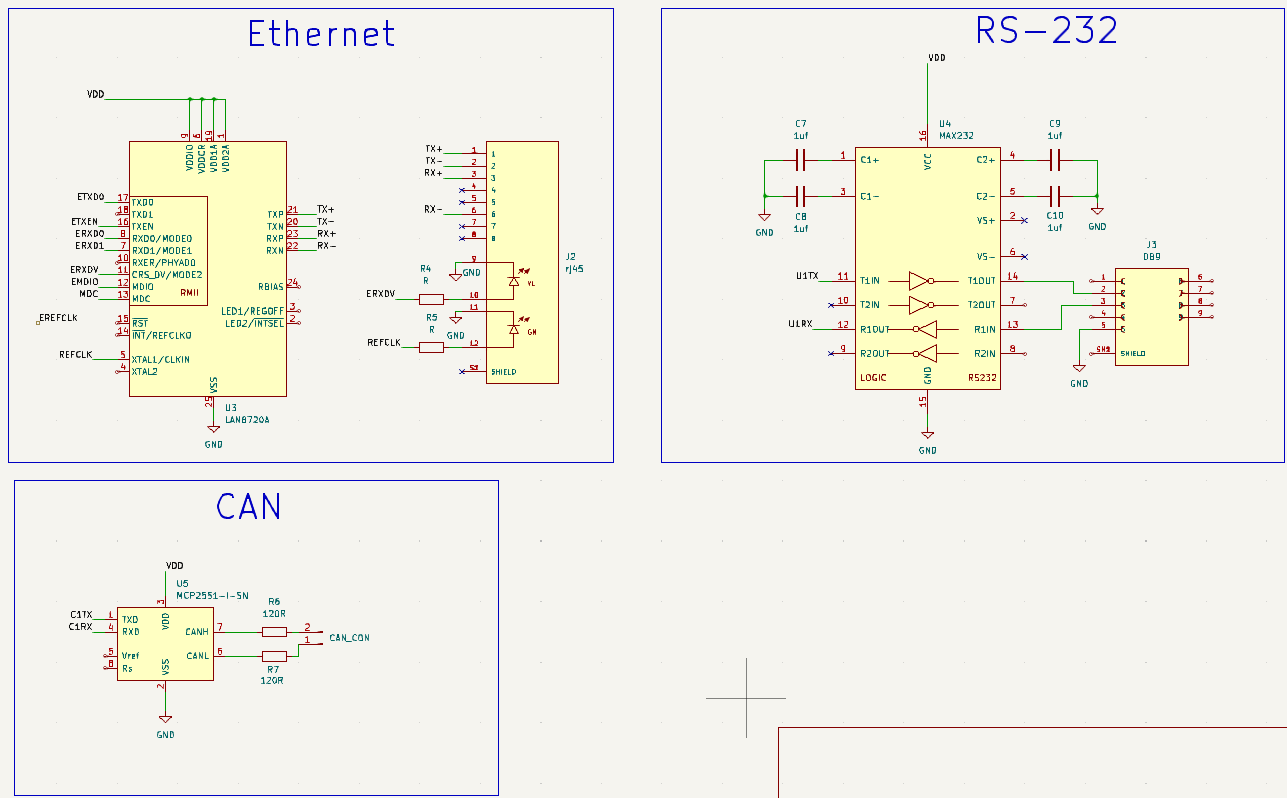

C7,8,9,10 are not correct, you just need two caps, and connect the two leads to 1 and 3 and other cap on 4 and 5.
There are many reference schematic for rs 232.
On can add some protection components
I’m not evolving in a specific industry now. But I have some projects related to automotive.I design different kind of pcb ,will need support to review them.
I’ll correct. Thanks dear. About the ethernet, the PHY LAN8720 must have is own oscillator(crystal)?
I haven’t used that part myself, I think you can find this in the datasheet
