PCB Design review. How did I do?

Posted by michaelw7177
3:22 am
21/11/2024

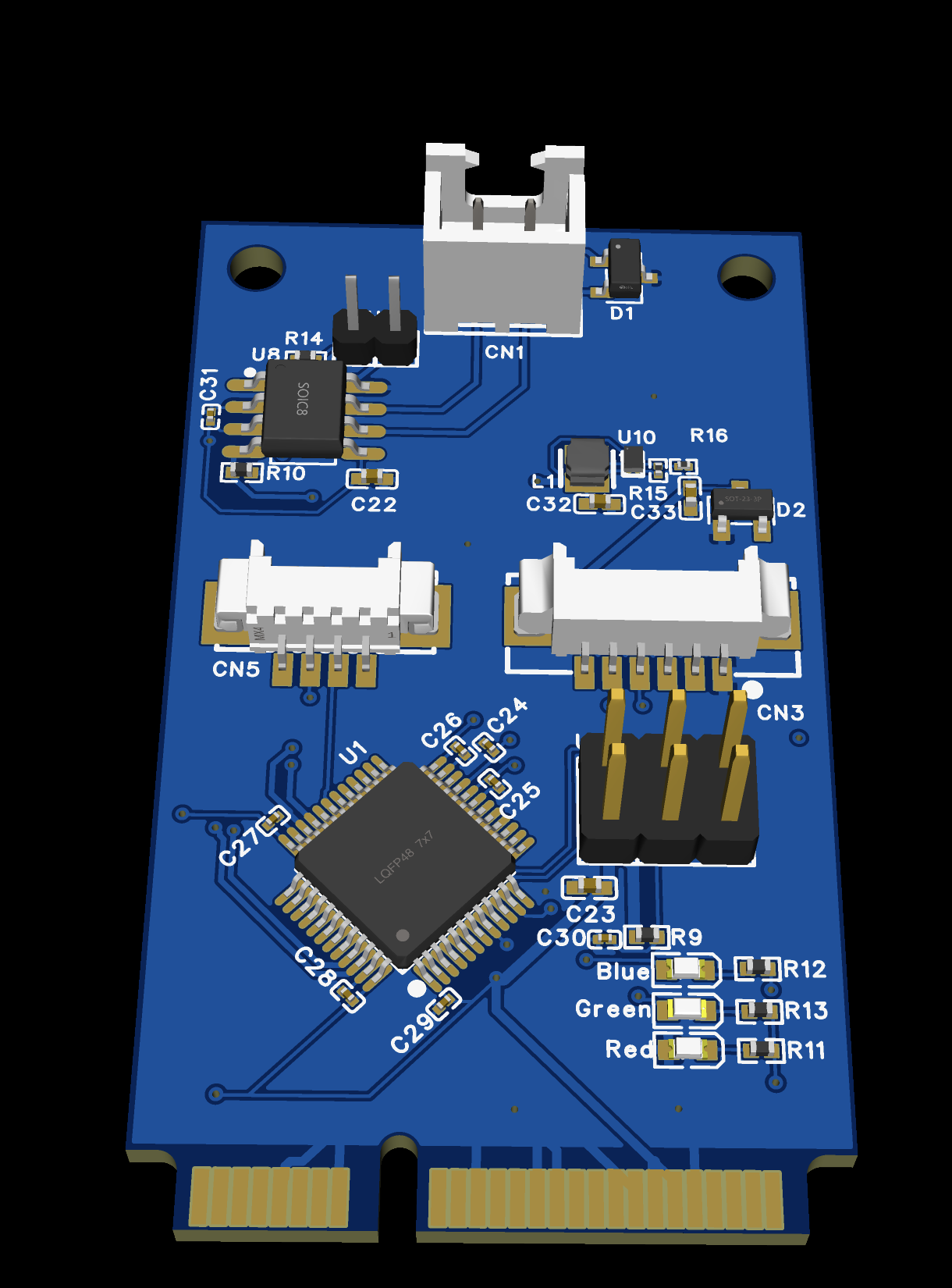

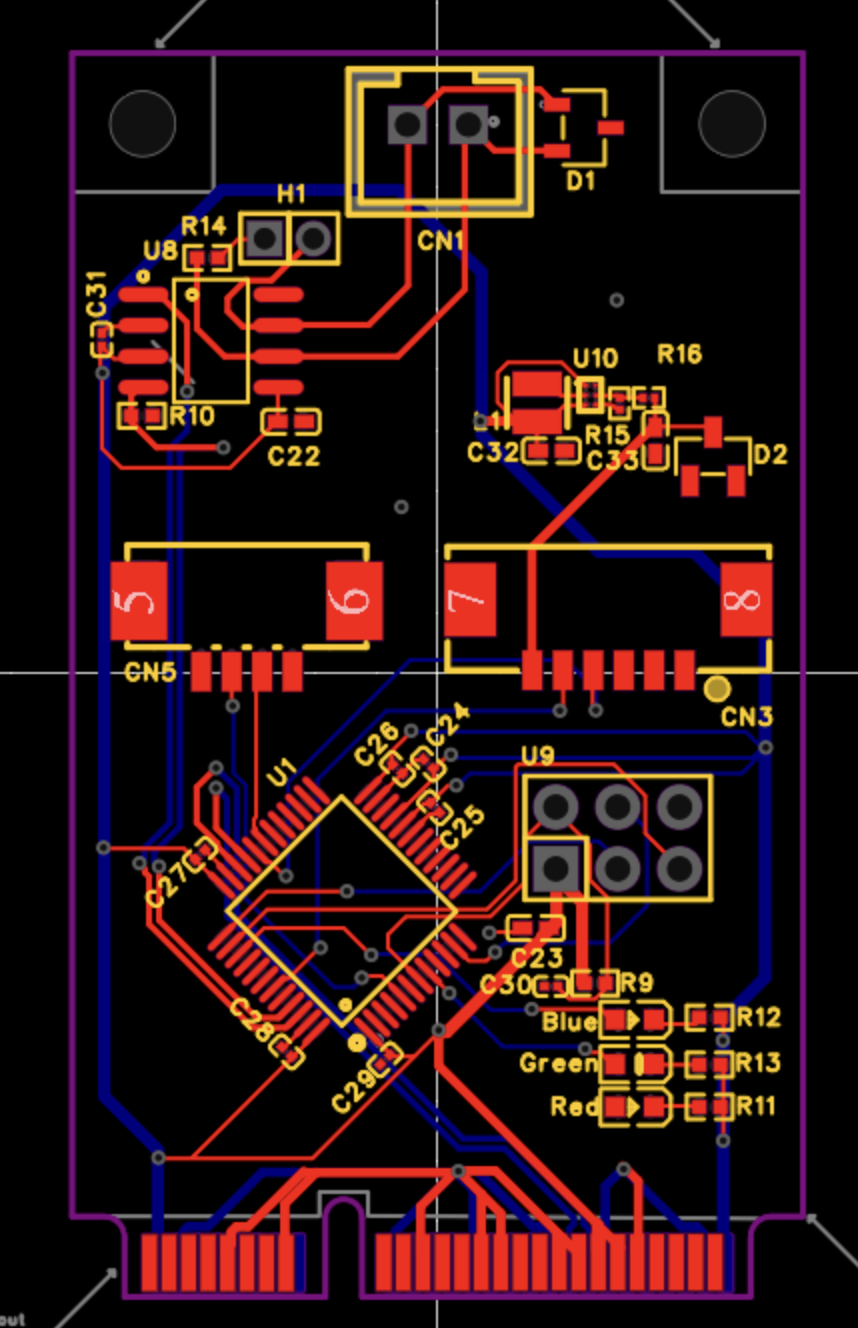

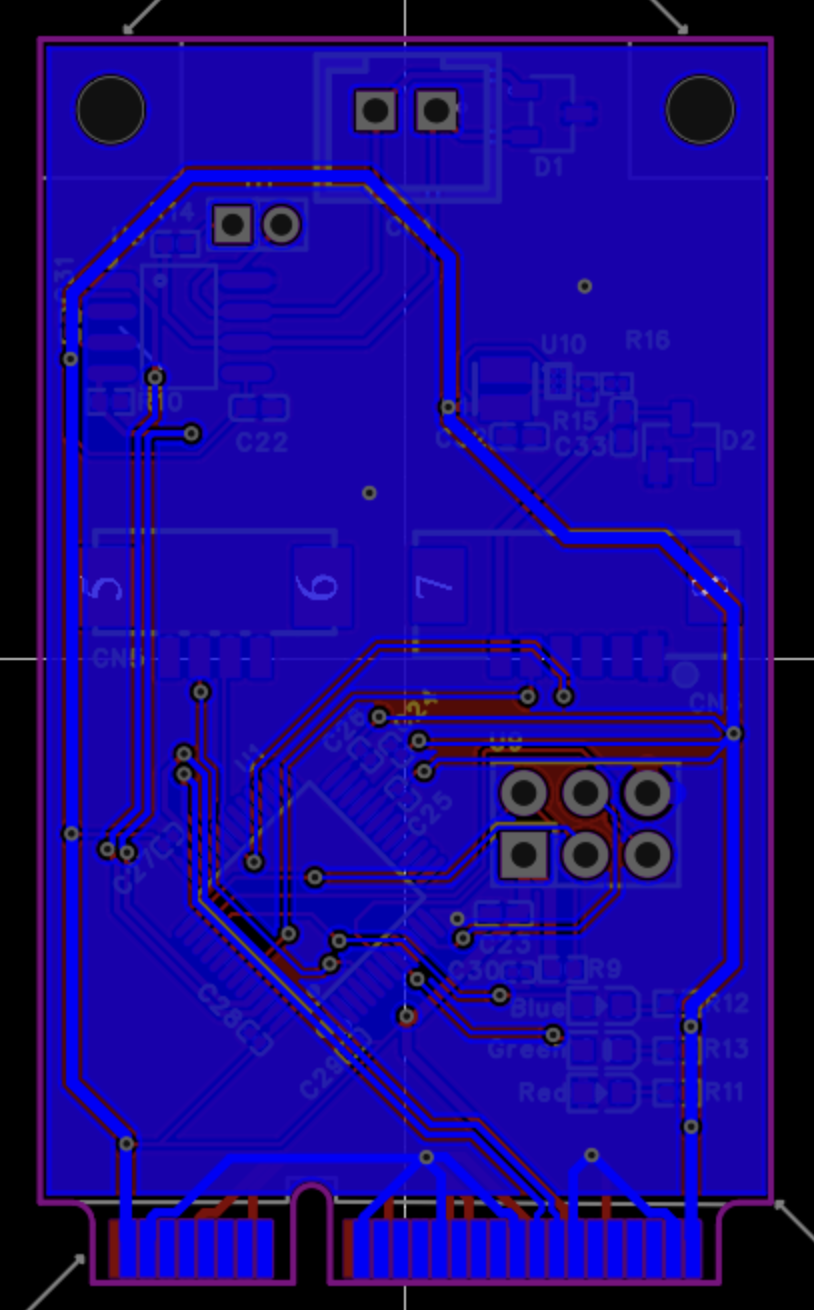

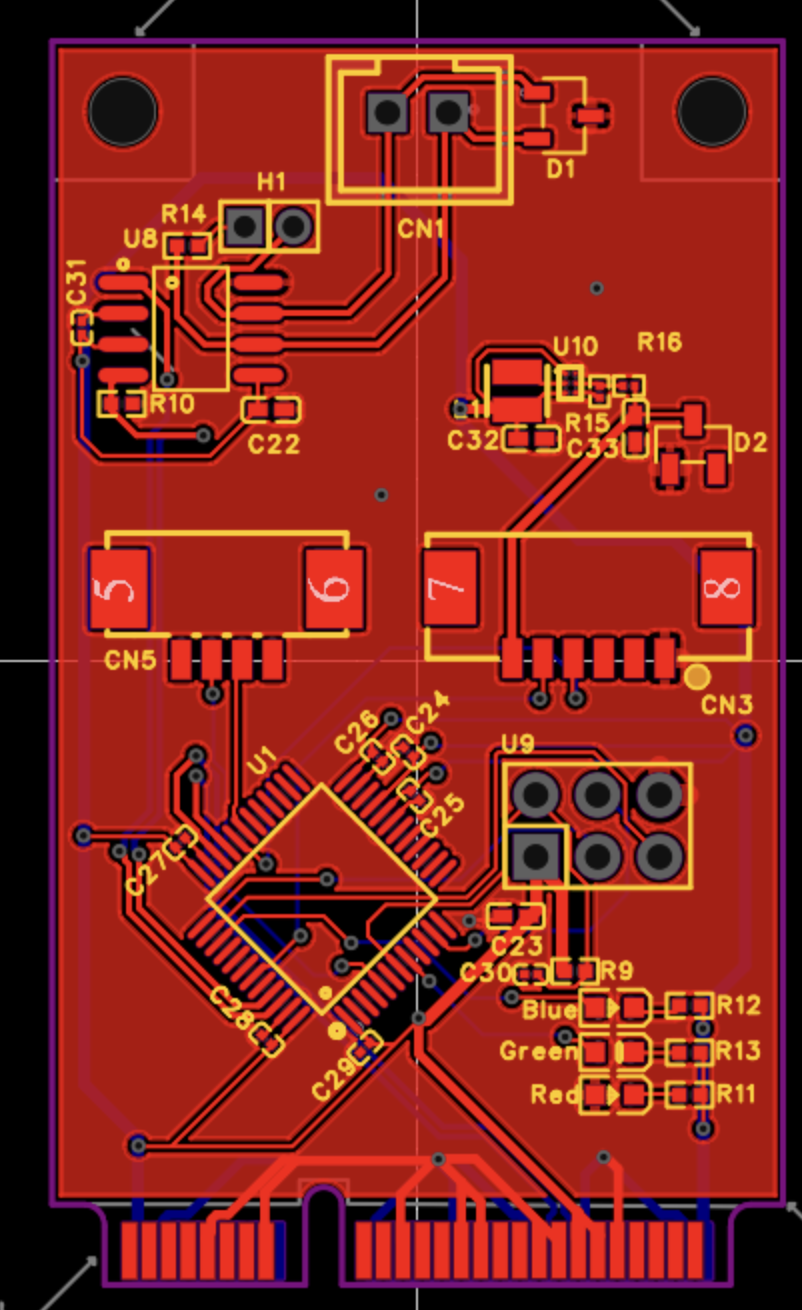

Very new to designing a PCB and want to see how well I’ve done. This is a Mini PCI-e card that is a mixture of the CANable USB module but in a PCI-e form for the development board I’m working with, but I’ve also added connections for a Beitian be-880 GPS module.
